Supply – DC
Action – Pull/Thrust (Push)
Size (mm) – Ø38 x 47
Stroke – 14mm

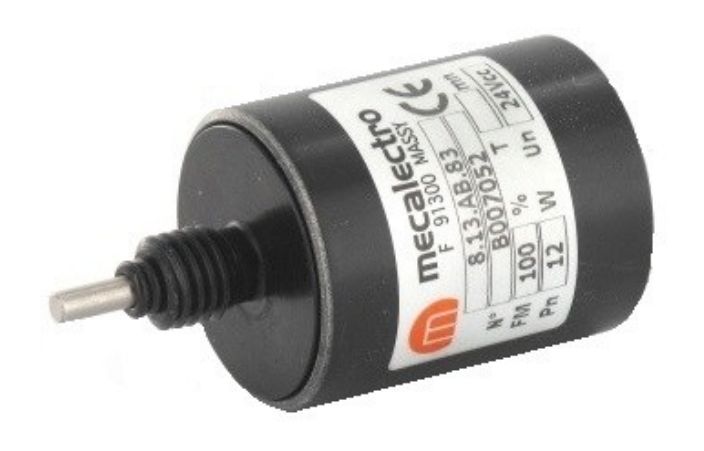

CLP12 Tubular Solenoid – Pull/Thrust
Specification
Rating/Power
| Duty Cycle | 100% | 40% | 25% | 15% | 5% |
| Power Consumption (Watts) | 12 | 28 | 40 | 70 | 200 |
| Max Stroke (mm) | 14 | 14 | 14 | 14 | 14 |
| Force @ 2mm | 600gF | 1.1KgF | 1.5KgF | 1.9KgF | 3.4KgF |
| Force @ 8mm | 500gF | 1.0KgF | 1.4KgF | 1.65KgF | 3.1KgF |
| Force @ 14mm | 480gF | 850gF | 1.25KgF | 1.55KgF | 3.1KgF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
3D Download
3D download
