Supply – DC
Action – Pull/Thrust (Push)
Size (mm) – Ø30 x 36
Stroke – 10mm

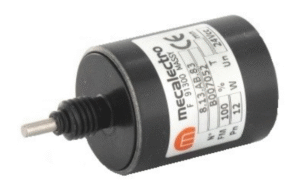

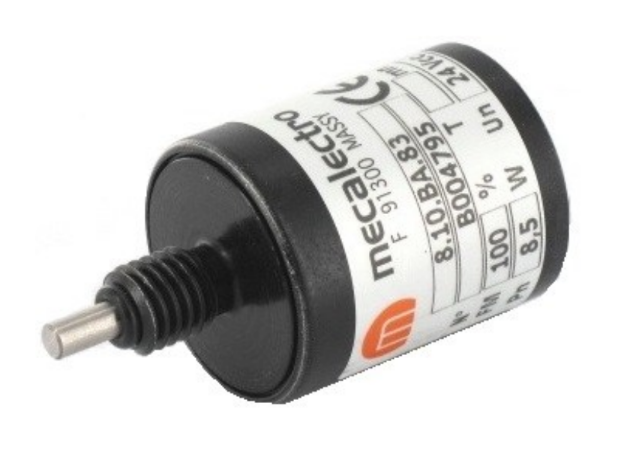

CLP10 Tubular Solenoid – Pull/Thrust
Specification
Rating/Power
| Duty Cycle | 100% | 40% | 25% | 15% | 5% |
| Power Consumption (Watts) | 8.5 | 18 | 26 | 40 | 110 |
| Max Stroke (mm) | 10 | 10 | 10 | 10 | 10 |
| Force @ 2mm | 400gF | 680gF | 950gF | 1.1KgF | 1.7Kgf |
| Force @ 6mm | 290gF | 500gF | 700gF | 950gF | 1.7Kgf |
| Force @ 10mm | 150gF | 350gF | 450gF | 650gF | 1.4KgF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
