Supply – DC
Action – Thrust (Push)
Size (mm) – 45 x 25.4 x 32
Stroke – 16mm max
Weight complete 192g approx
Plunger weight 37g max

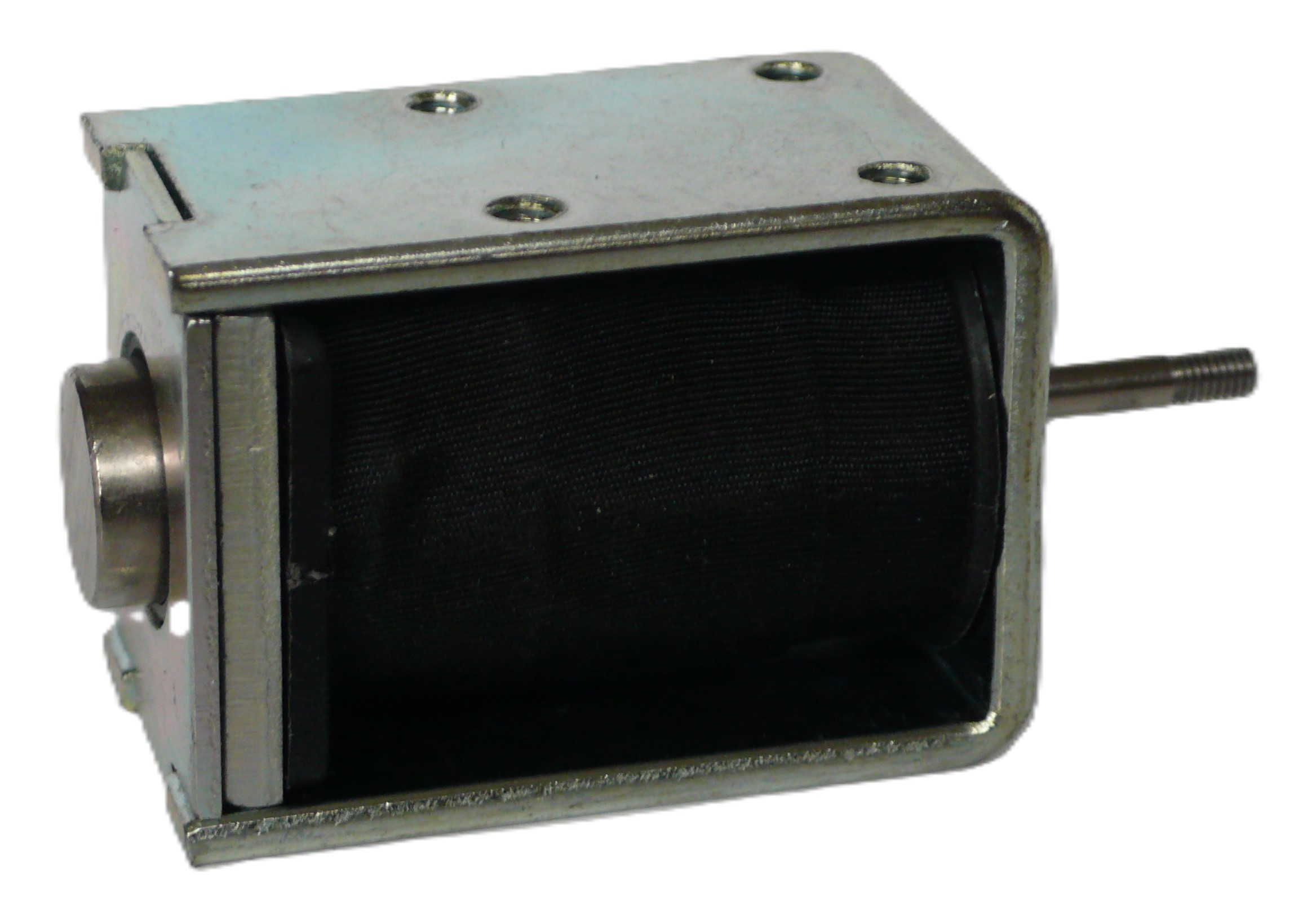

BS3 Open Frame Solenoid – Thrust
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 8 | 16 | 32 | 80 |
| Max Stroke (mm) | 12 | 14 | 16 | 16 |
| Force @ 4mm | 440gF | 850gF | 1.6KgF | 3.1KgF |
| Force @ 12mm | 60gF | 180gF | 380gF | 920gF |
| Force @ 16mm | X | X | 220gF | 560gF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
