Supply – DC
Action – Pull
Size (mm) – 30 x 10 x 12.7
Stroke – 9mm max
Weight complete – 19g
Plunger weight – 4g max

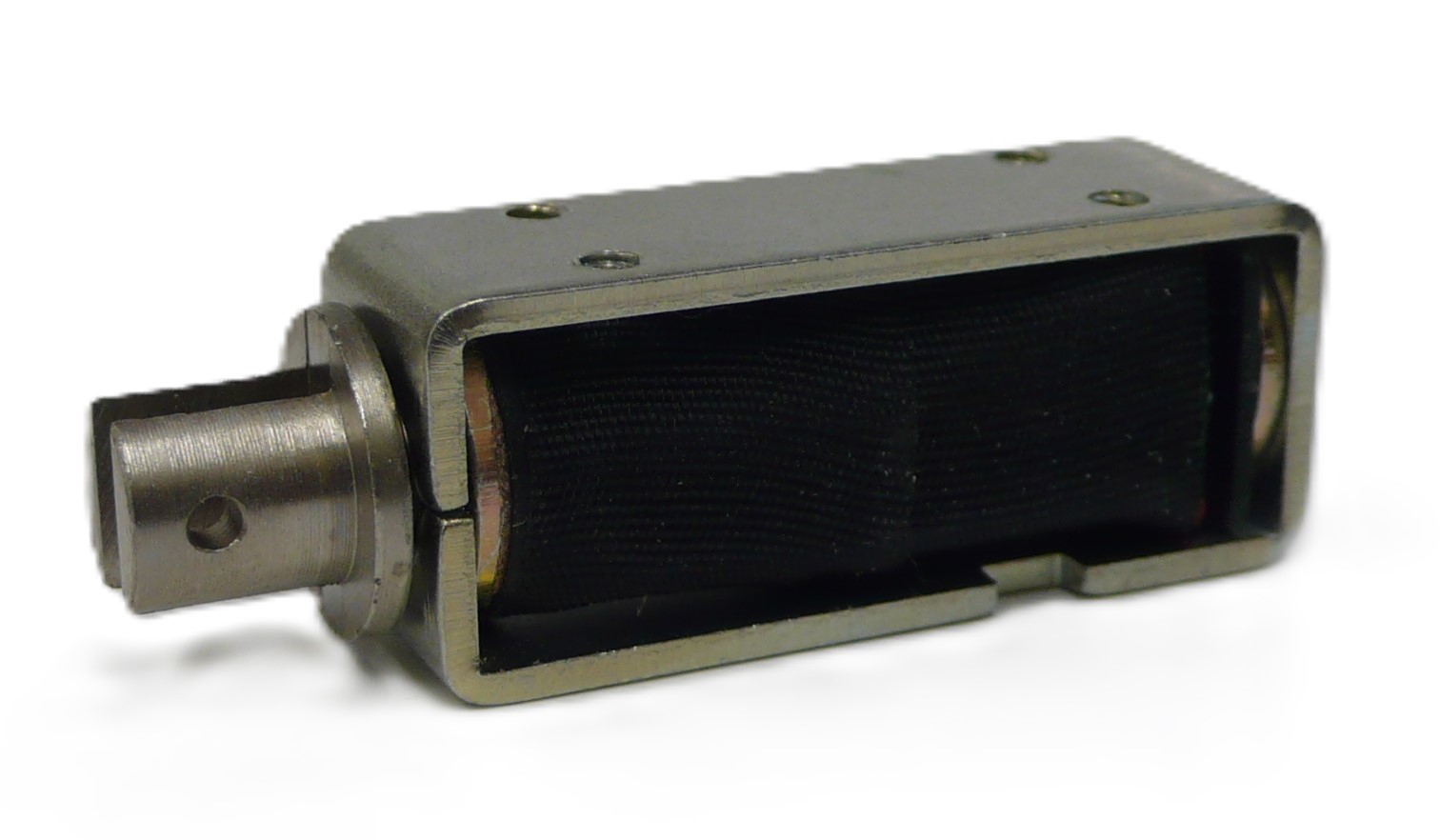

BDC0 Open Frame Solenoid – Pull
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 2W | 4W | 8W | 20W |
| Max Stroke (mm) | 4 | 6 | 9 | 9 |
| Force @ 2mm | 40gF | 65gF | 120gF | 250gF |
| Force @ 4mm | 20gF | 40gF | 45gF | 100gF |
| Force @ 8mm | N/A | N/A | 25gF | 50gF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
