Supply – DC
Action – Thrust
Size (mm) -42 x 16 x 19
Stroke – 18mm max
Weight complete 57g
Plunger weight 10g max

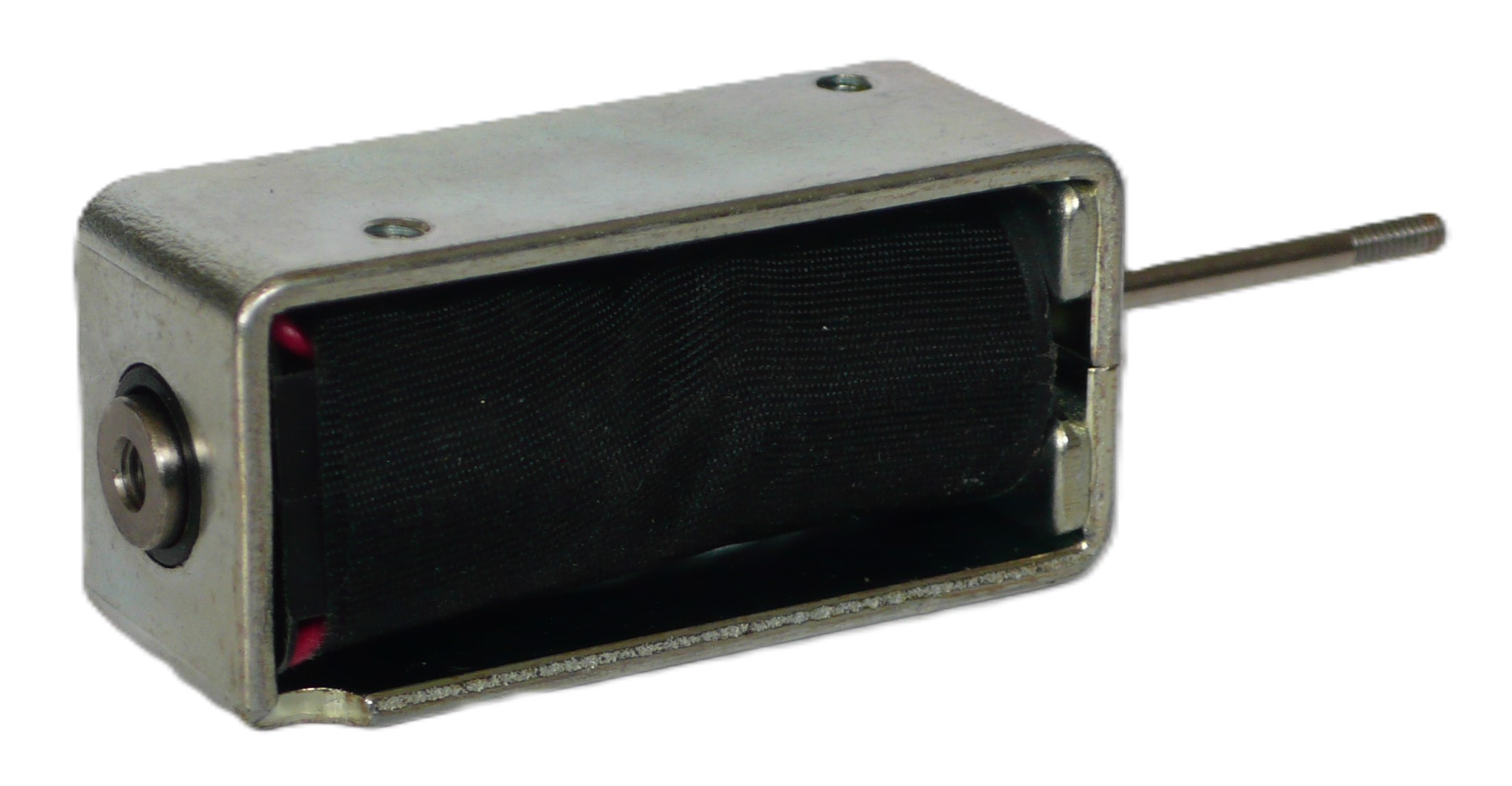

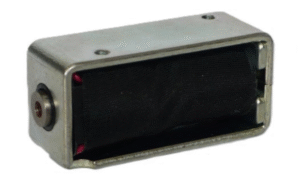

BDC2 Open Frame Solenoid – Thrust
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 5W | 10W | 20W | 50W |
| Max Stroke (mm) | 12 | 18 | 18 | 18 |
| Force @ 2mm | 100gF | 250gF | 325gF | 700gF |
| Force @ 10mm | 20gF | 45gF | 80gF | 225gF |
| Force @ 18mm | X | 20gF | 40gF | 95gF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
