Supply – DC
Action – Pull
Size (mm) – 27 x 20 x 22
Stroke – 6mm max
Weight complete – 19g
Plunger weight 4g max

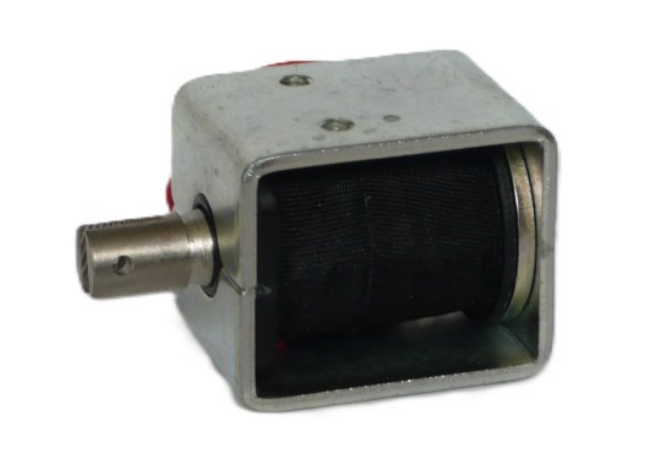

BDC1 Open Frame Solenoid – Pull
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 3.75W | 7.5W | 15W | 37.5W |
| Max Stroke (mm) | 6 | 6 | 6 | 6 |
| Force @ 2mm | 175gF | 290gF | 510gF | 875gF |
| Force @ 4mm | 150gF | 175gF | 250gF | 590gF |
| Force @ 6mm | 120gF | 150gF | 175gF | 390gF |
Please see datasheet for full performance curves
