Supply – AC or DC
Action – Pull
Size (mm) – 58 x 25.4 x 32
Stroke – 24mm max

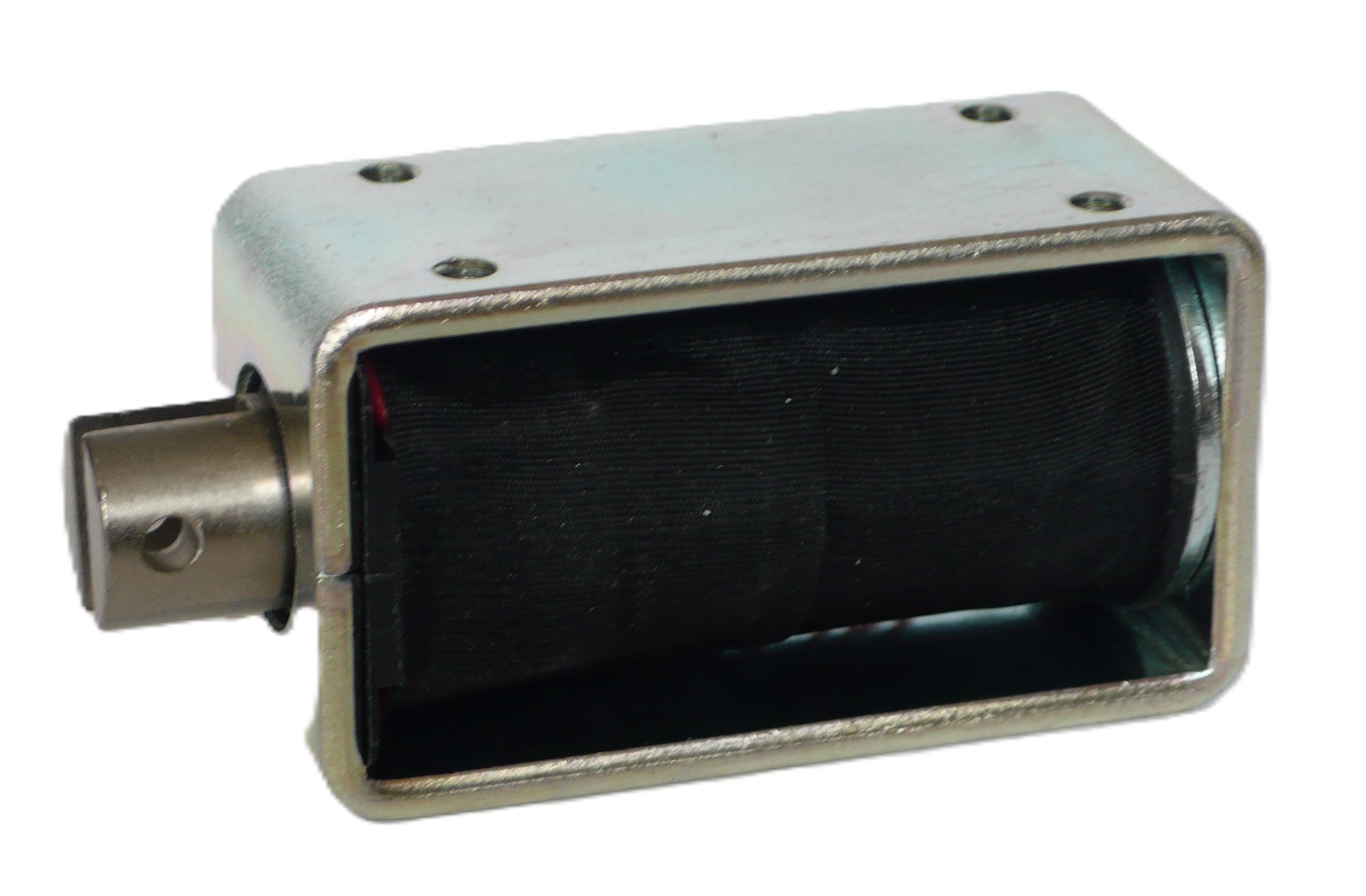

B4 Open Frame Solenoid – Pull
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 11 | 22 | 44 | 110 |
| Max Stroke (mm) | 24 | 24 | 24 | 24 |
| Force @ 6mm | 450gF | 900gF | 1.4KgF | 2.3KgF |
| Force @ 12mm | 125gF | 350gF | 750gF | 1.4KgF |
| Force @ 18mm | 100gF | 250gF | 500KgF | 900gF |
Please see datasheet for full performance curves
Long Stroke Pull option available
