Supply – AC or DC
Action – Pull
Size (mm) – 50.8 x 41.3 x 49
Stroke – 18mm max

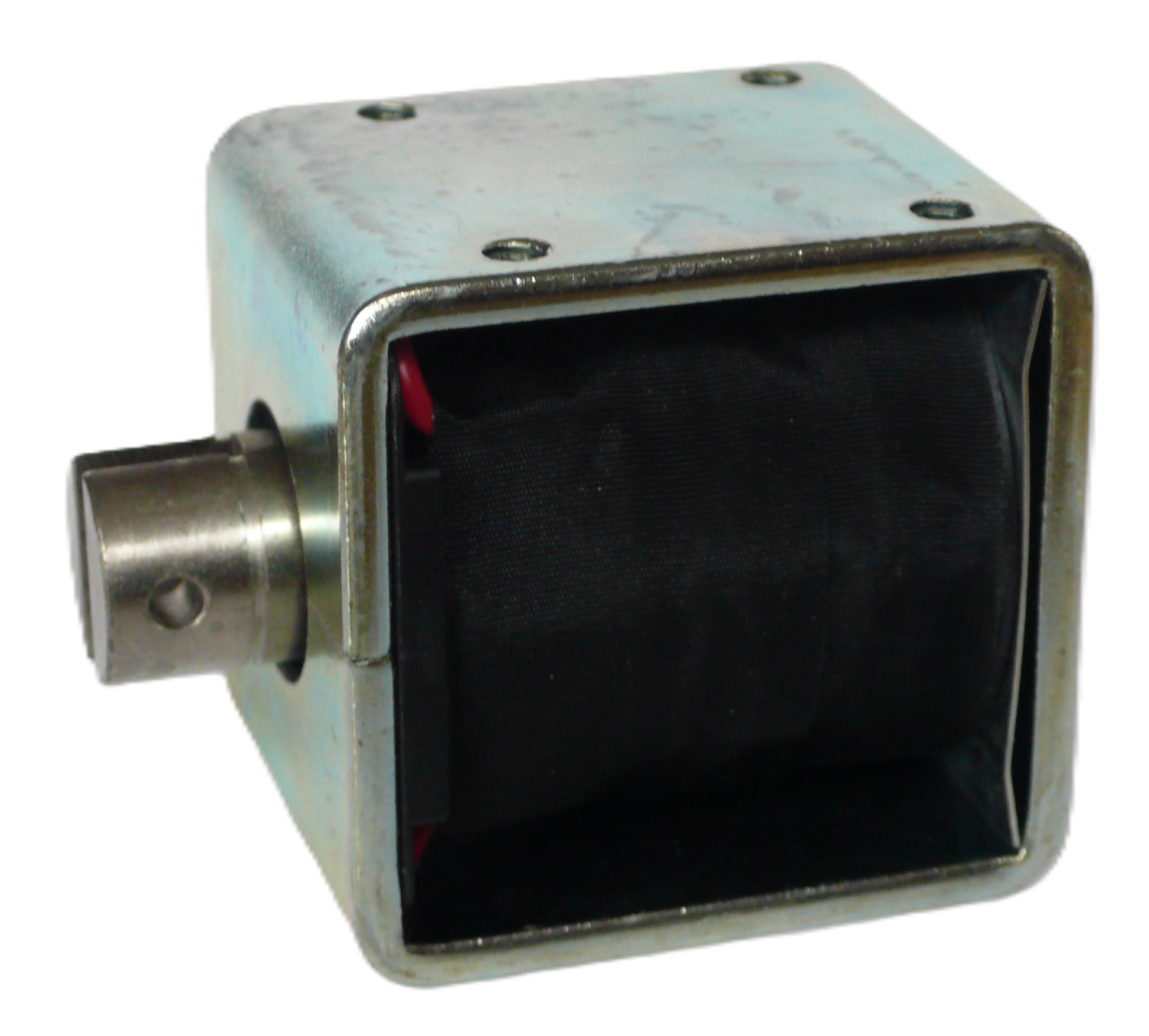

B5 Open Frame Solenoid – Pull
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 15W | 30W | 60W | 150W |
| Max Stroke (mm) | 18 | 18 | 18 | 18 |
| Force @ 6mm | 900gF | 1.8KgF | 3.0KgF | 6.0KgF |
| Force @ 12mm | 400gF | 600gF | 1.0Kgf | 3.4KgF |
| Force @ 18mm | 200gF | 400gF | 600gF | 1.6KgF |
Please see datasheet for full performance curves Long Stroke Pull option available
Datasheet
Please click for datasheet
