Supply – DC
Action – Thrust (Push)
Size (mm) – 36.8 x 20 x 25
Stroke – 13mm max
Weight complete 100g
Plunger weight 18g max

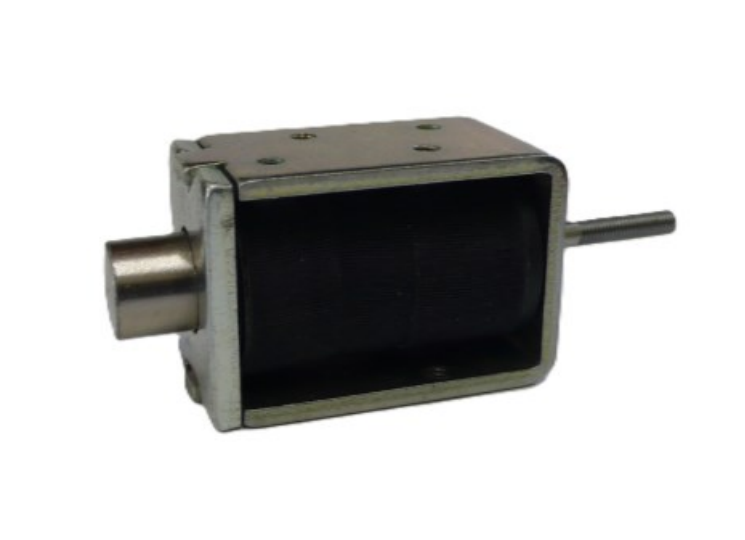

BDC6 Open Frame Solenoid – Thrust
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 5W | 10W | 20W | 50W |
| Max Stroke (mm) | 7 | 9 | 13 | 13 |
| Force @ 3mm | 200gF | 400gF | 630gF | 1.09KgF |
| Force @ 6mm | 90gF | 150gF | 320gF | 700gF |
| Force @ 9mm | X | 50gF | 150gF | 390gF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
