Supply – DC
Action – Pull
Size (mm) – 66.8 x 41.3 x 48.8
Stroke – 25mm max
Weight complete 553g
Plunger weight 92g max

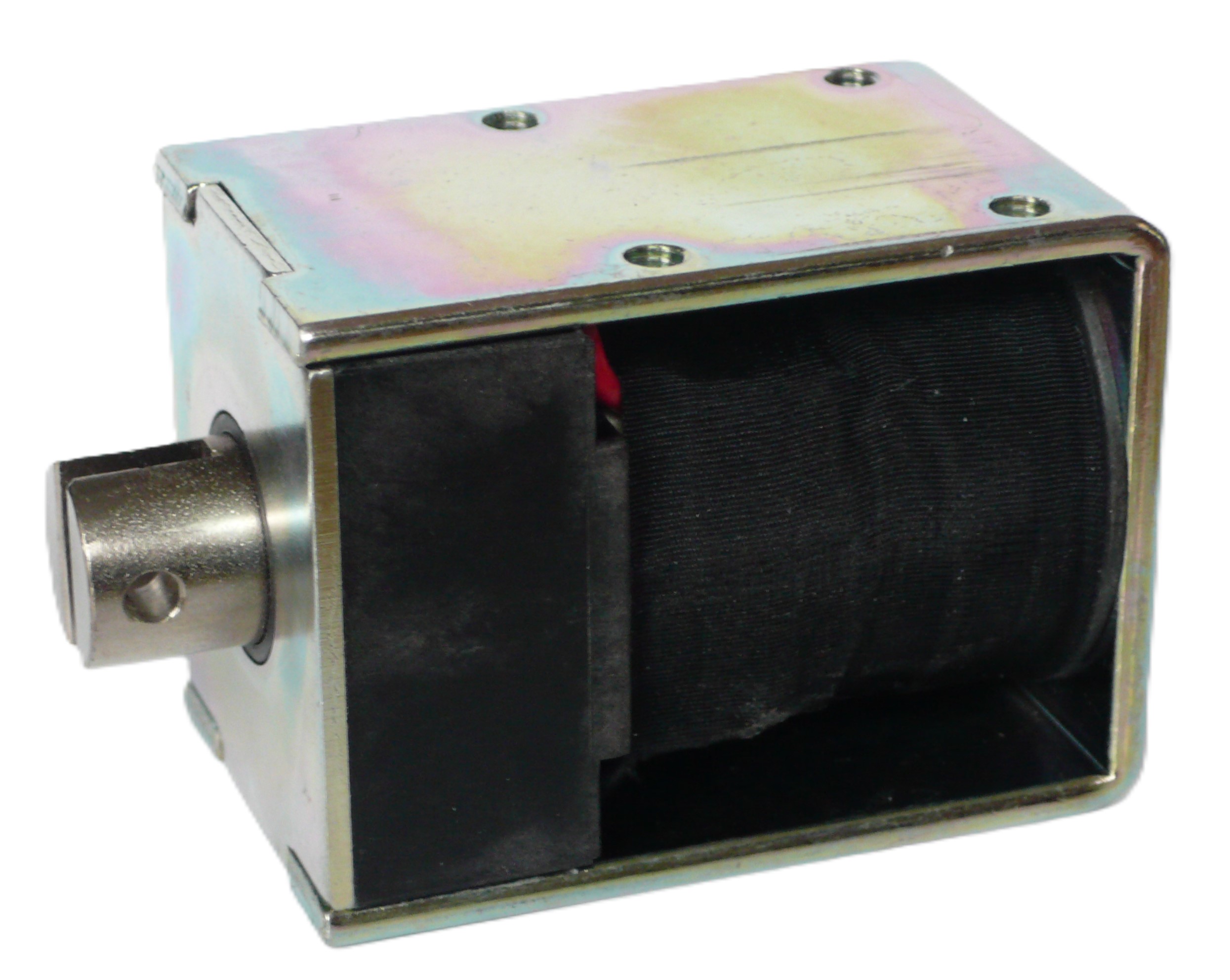

BLM5 DC Latching Solenoid – Pull
Specification
Rating/Power
Magnet Holding Force – 6.0KgF
| Power Consumption | 20W | 40W | 80W | 200W |
| Max Stroke (mm) | 20 | 25 | 25 | 25 |
| Force @ 5mm | 1.6KgF | 3.0KgF | 4.6KgF | 7.0KgF |
| Force @ 10mm | 700gF | 1.4KgF | 2.7KgF | 4.8KgF |
| Force @ 20mm | 100gF | 400gF | 900gF | 2.0KgF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
