Supply – DC
Action – Thrust (Push)
Size (mm) – 45 x 25.4 x 32
Stroke – 10mm max
Weight complete 167g
Plunger weight 45g max

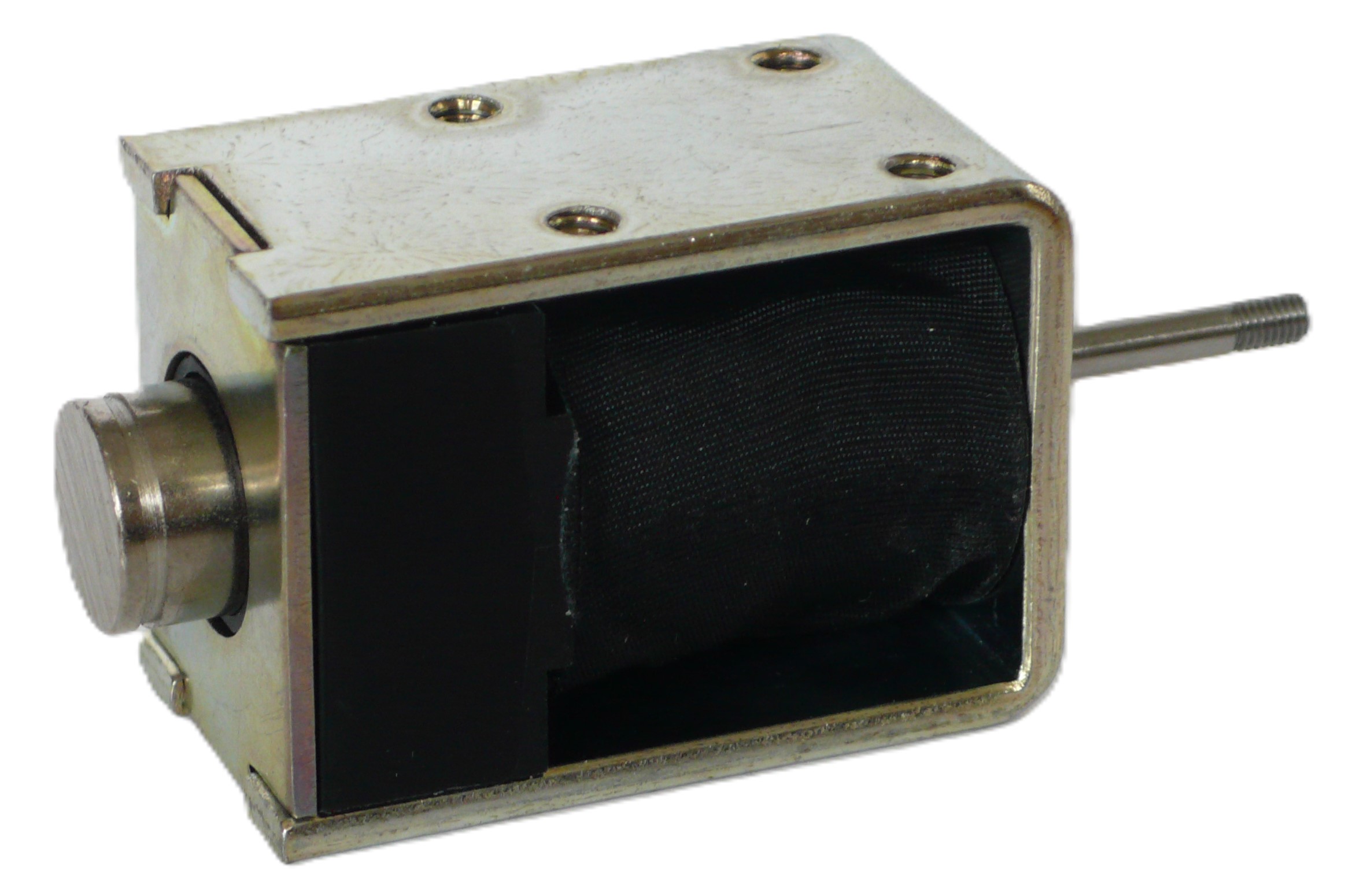

BLM3 DC Latching Solenoid – Thrust
Specification
Rating/Power
Magnet Holding Force – 3.5KgF
| Power Consumption (Watts) | 6.5W | 20W | 40W | 65W |
| Max Stroke (mm) | 10 | 10 | 10 | 10 |
| Force @ 3mm | 500gF | 1.0KgF | 2.2KgF | 3.2KgF |
| Force @ 6mm | 250gF | 600gF | 1.0KgF | 1.5KgF |
| Force @ 9mm | 100gF | 400gF | 550gF | 1.0KgF |
Please see datasheet for full performance curves
Datasheet
Please click for datasheet
