Supply – DC
Action – Pull
Size (mm) – Ø63.5 x 112
Stroke – 50mm max
Weight complete 1.9 Kg
Plunger weight 400g max

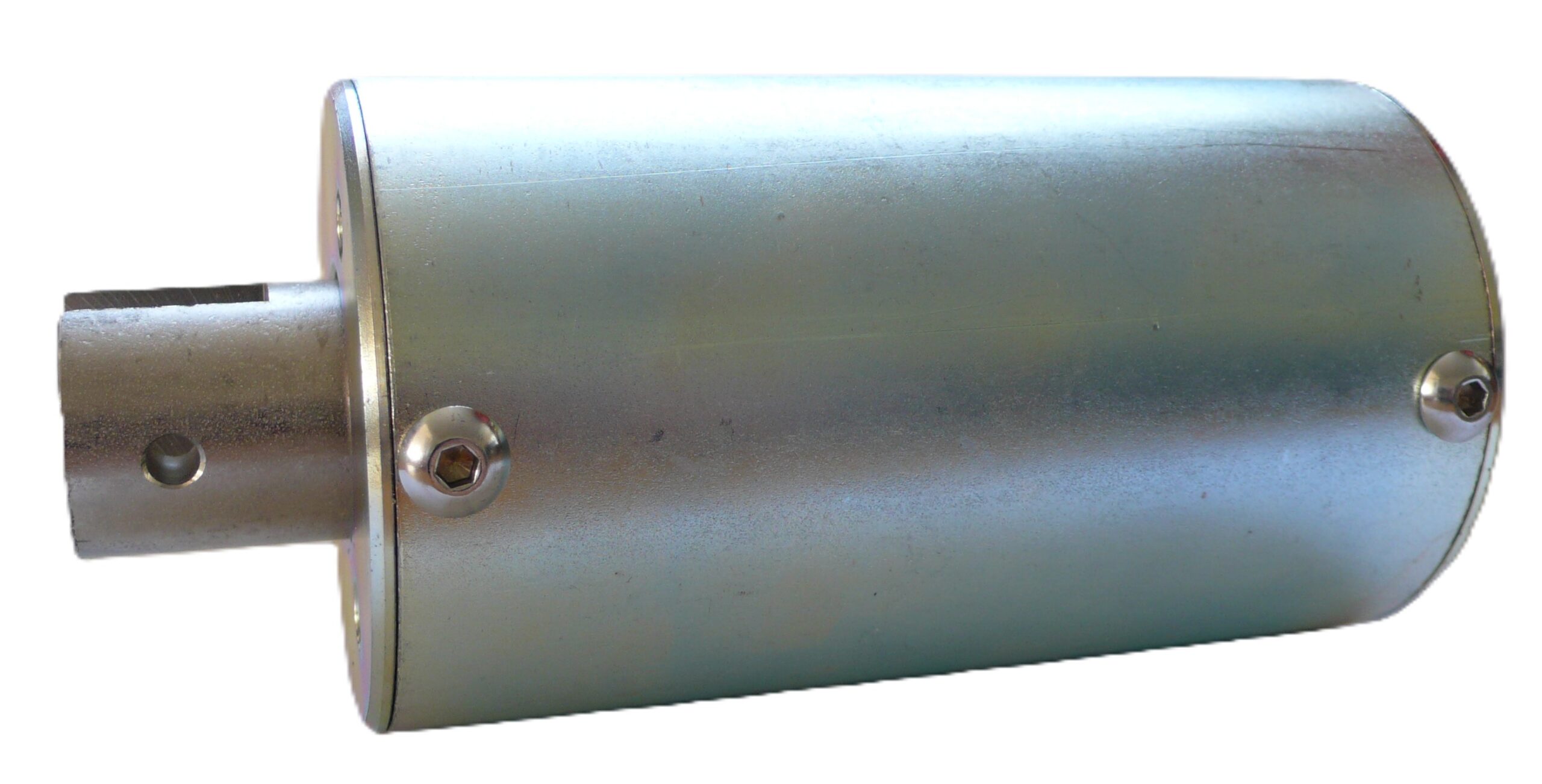

BDC8 DC Tubular Solenoid – Pull
Specification
Rating/Power
| Duty Cycle | 100% | 50% | 25% | 10% |
| Power Consumption (Watts) | 20 | 40 | 80 | 200 |
| Max Stroke (mm) | 40 | 50 | 50 | 50 |
| Force @ 10mm | 2.5KgF | 5.5KgF | 9.0KgF | 15.0KgF |
| Force @ 30mm | 600gF | 1.0KgF | 2.2KgF | 5.8KgF |
| Force @ 50mm | X | 500gF | 1.0KgF | 2.5KgF |
Please see datasheet for full performance curves Long Stroke Pull option available
